Moasure® 2 PRO Kit
Rated 4.7・100,000+ units sold
$899
No subscription required
Split into 6 interest-free payments of $149.83 at checkout
Moasure 2 PRO’s advanced motion-sensor engine delivers tighter measurements when accuracy matters most.
Measure and draw irregular jobsites with the only motion-based measuring technology that captures perimeter, area, elevation, and volume as you walk.
Measure with up to ±0.3% error
Capture sq. footage, elevation perimeter & volume
Export measurements to CAD or PDF
Locate X, Y co-ordinates with
Add to cart - $899
Pay in 6 instalments at 0% APR
Try it risk free from $149.83
Try Moasure 2 PRO on your jobsites for 60 days, risk-free – and split the cost into 6 interest-free payments at checkout.
Learn more
60-day money-back guarantee
Fast & Free
US delivery
Moasure 2-year warranty
Linear Distance
±0.3% error
±2 inches over 50 ft
Elevation
±0.3% error
±¼ inch over 6 ft
Perimeter
±0.5% error
±6 inches over 100 ft
Area
±1% error
±2 sq ft over 200 sq ft
Volume
±1.5% error
±1.5 cu yd over 100 cu yd
Layout
±1% error
±2 sq ft over 200 sq ft
For best accuracy, use correct Moasure technique.
Linear Distance
±0.3% error
±2 inches over 50 ft
Elevation
±0.3% error
±¼ inch over 6 ft
Perimeter
±0.5% error
±6 inches over 100 ft
Area
±1% error
±2 sq ft over 200 sq ft
Volume
±1.5% error
±1.5 cu yd over 100 cu yd
Layout
±1% error
±2 sq ft over 200 sq ft
For best accuracy, use correct Moasure technique.
We ship worldwide from our Ohio warehouse using trusted carriers.
Standard US Delivery: Free* (3–5 business days)
Express US Delivery: $25 (1–3 business days)
You’ll receive order and shipping confirmation emails with tracking details.
Tracking may take up to 24 hours to update.
*Free shipping to the contiguous USA (excludes Hawaii, Alaska, and U.S. territories).

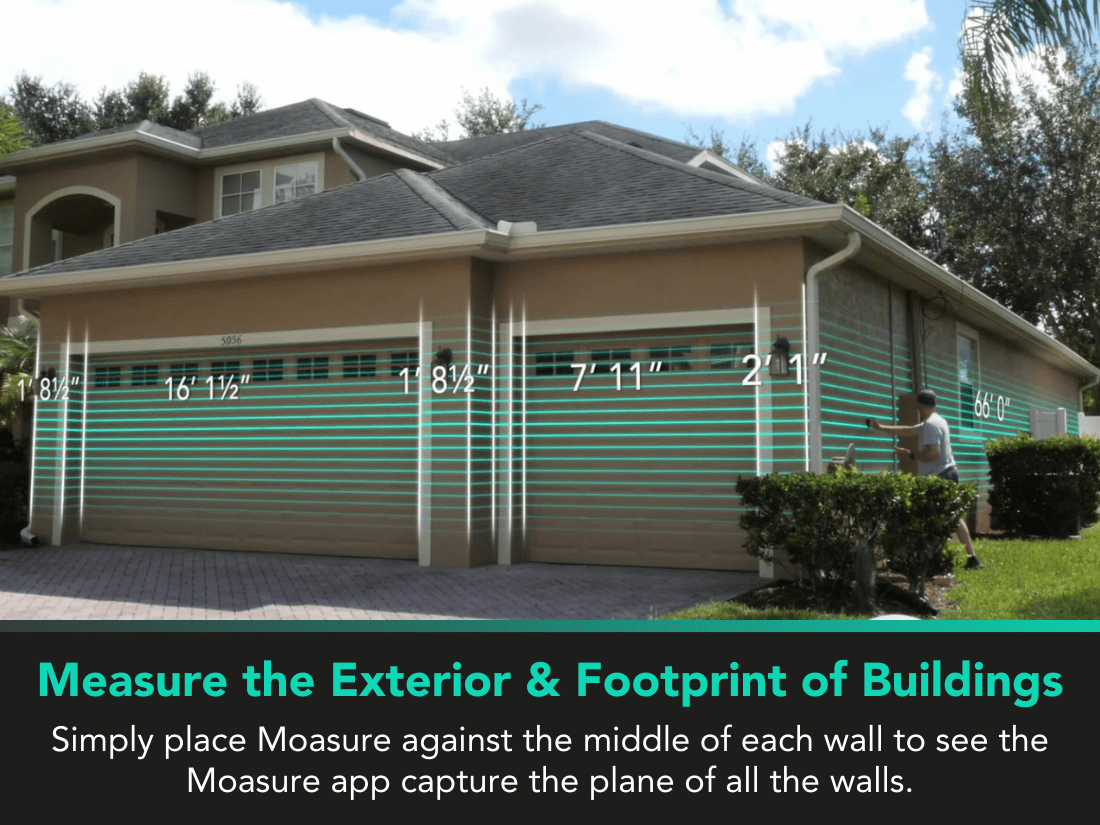

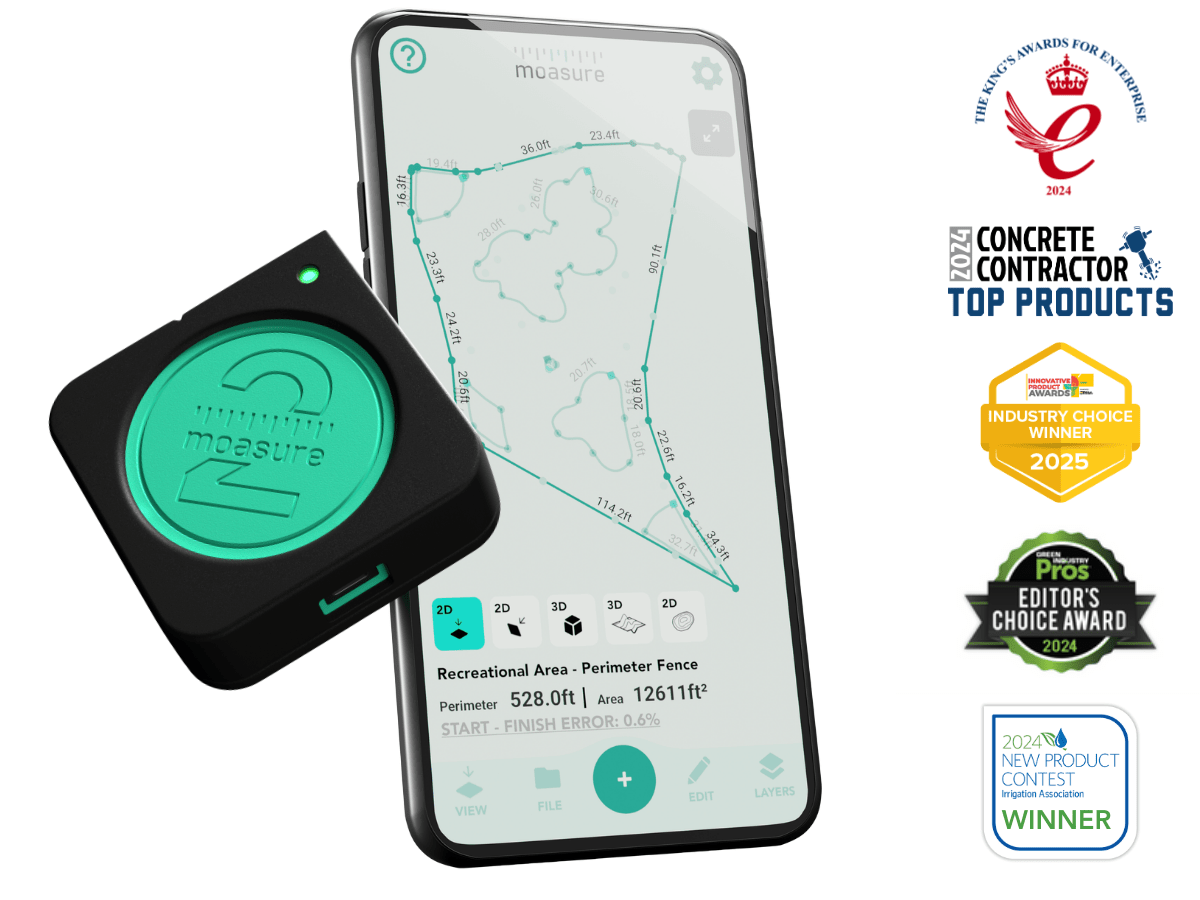

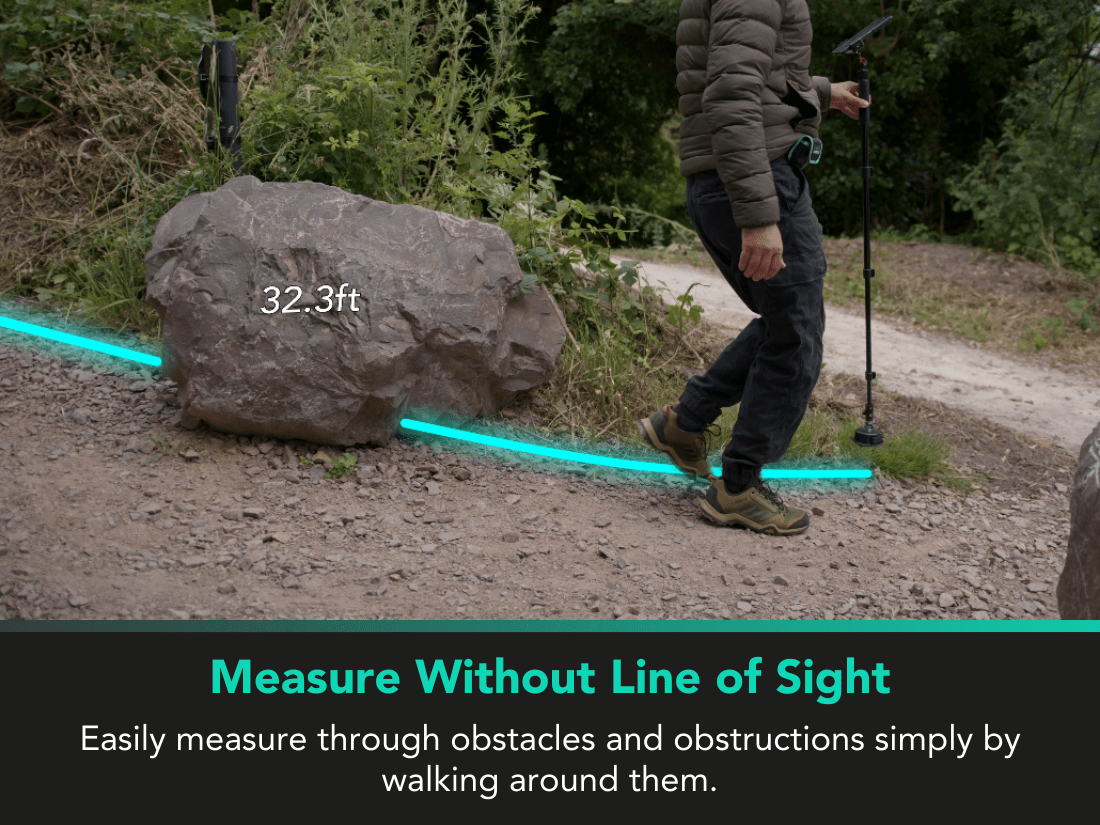

Moasure is a pocket-sized device that transforms your movement into fully dimensioned site plans. No line of sight, or extra hands required.
It uses motion-based technology to track your motion in all 3 dimensions with no GPS, cell signal or internet required.
Learn more about how Moasure works
Moasure 2 PRO and USB-C Cable
Our patented pocket-sized motion-based measuring device and a USB-C cable for charging and firmware updates.
Moasure STICK
Measure in comfort with the Moasure STICK. It secures your phone in one end and the Moasure device on the other to prevent repeatedly bending over to set your Moasure device down.
Moasure Belt Pouch and Tool Bag
Conveniently store and protect your Moasure 2 PRO in the belt pouch and keep your Moasure kit together with our branded tool bag.
Getting started support
Every Moasure comes with our in-depth user guide, training videos, in-app coaching and the ability to speak directly with our customer success team.
Moasure requires your smartphone or tablet to have at least Bluetooth 5.0
Operating system: Apple iOS 13 and higher, Android OS 9.0 and higher
Operating Temp: -10C to +50C (14F to 122F)
Storage Temp: -20C to +70C (-4F to 158F)
Shock: Survives 6ft drop on to concrete
Sealing: Sealed to IP67 – water-resistant
Certification: CE certified
Battery Type: Lithium polymer
Battery Life: 10 hours' continuous measuring
Recharge Method: USB C (cable supplied)
Recharge time:2 -3 hours
Moasure devices are built to last. Alongside our 60-day free trial, every device includes a two-year warranty.
The warranty starts on delivery and covers the device and accessories against defects in materials and workmanship.
Try it risk-free for 60-days
Access crucial site data in minutes with Moasure 2 PRO
Discover the features that make the Moasure 2 PRO suited for irregular jobsites.

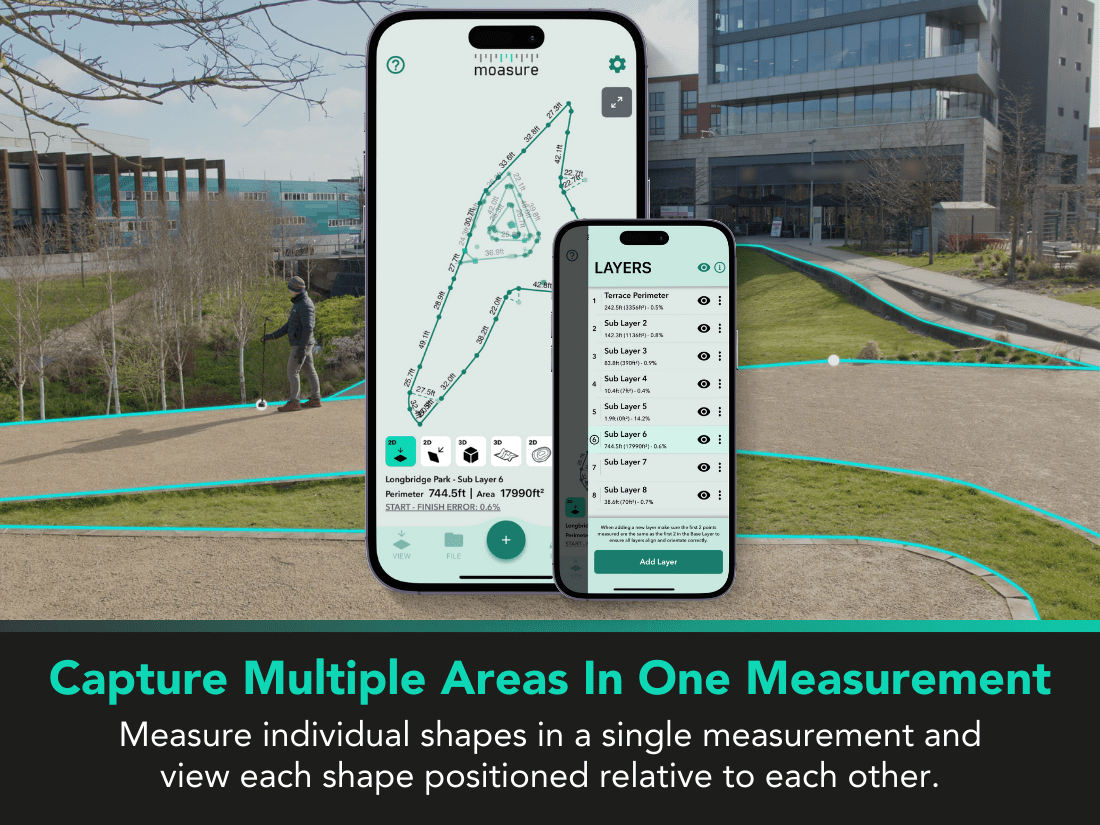

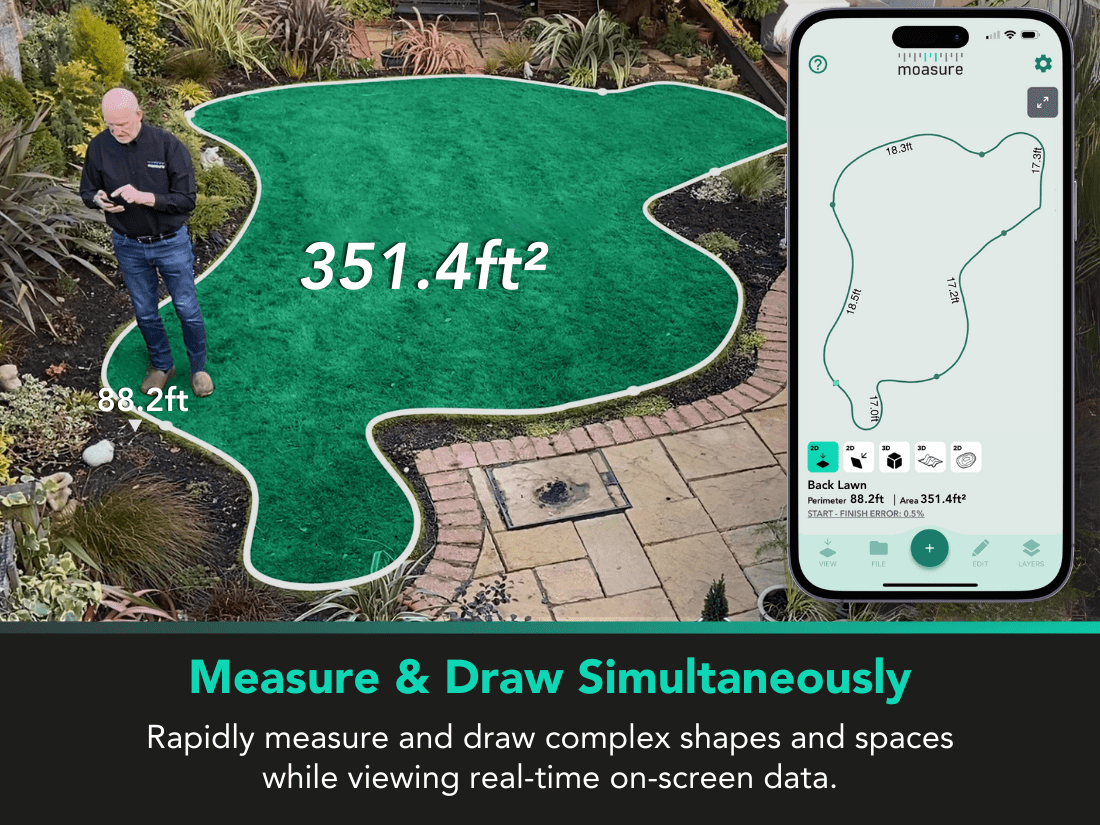

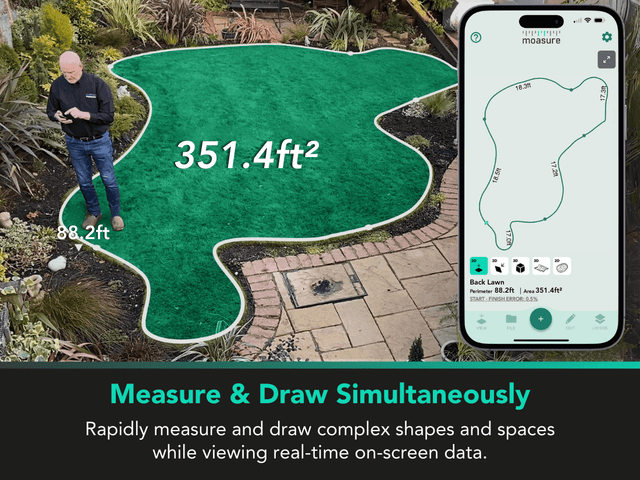

Measure and draw complex jobsites at the same time
Moasure detects your movement in real time, allowing you to trace intricate, accurate site plans quickly on the Moasure app. Visualize your measurements in real-time as the app draws site plans as you walk.

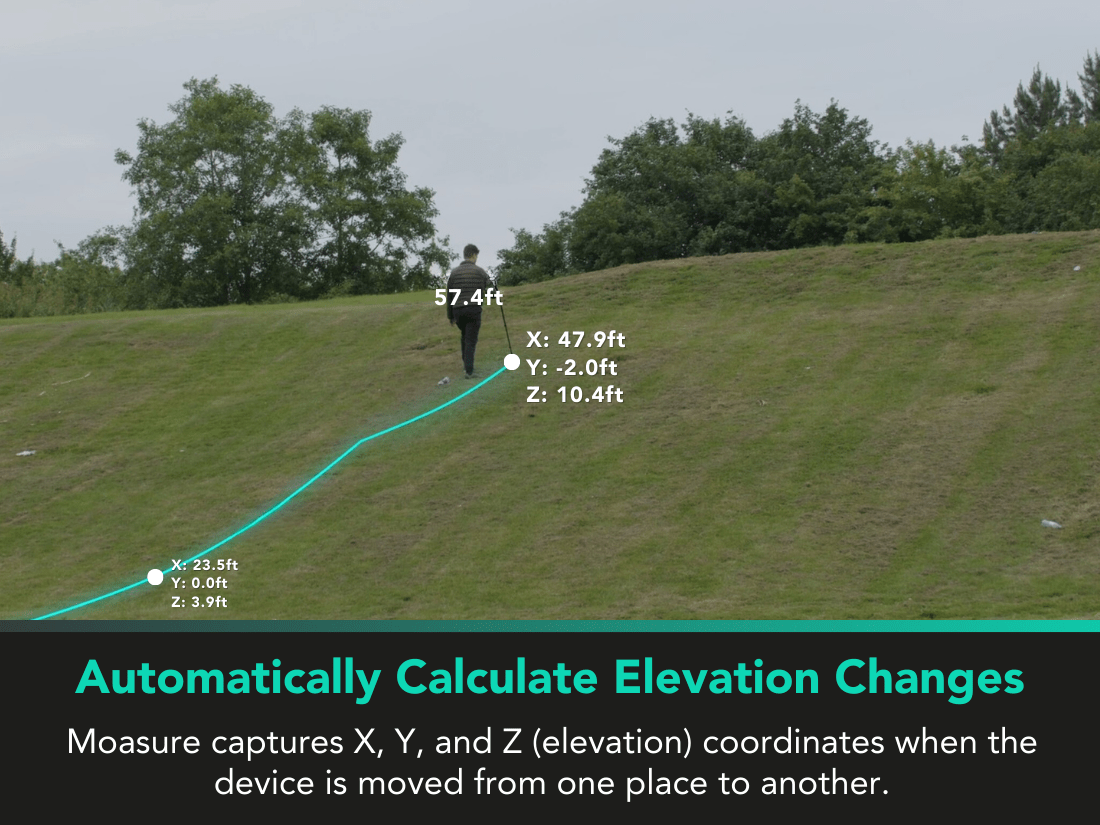

Rapidly calculate sq. footage, elevation, volume and more
Moasure captures points every 6-8 seconds to create fully-dimensioned site plans. Automatically capture perimeter, area, volume, elevation, plus the rise and run between any two points on your site plan.
Instantly share professional plans with clients or colleagues
Once you’ve finished your measurement, effortlessly export it to a range of file formats. Share professional, custom-branded PDFs with clients, or import the measurement to your CAD software via DWG or DXF.
Exclusive to Moasure 2 PRO

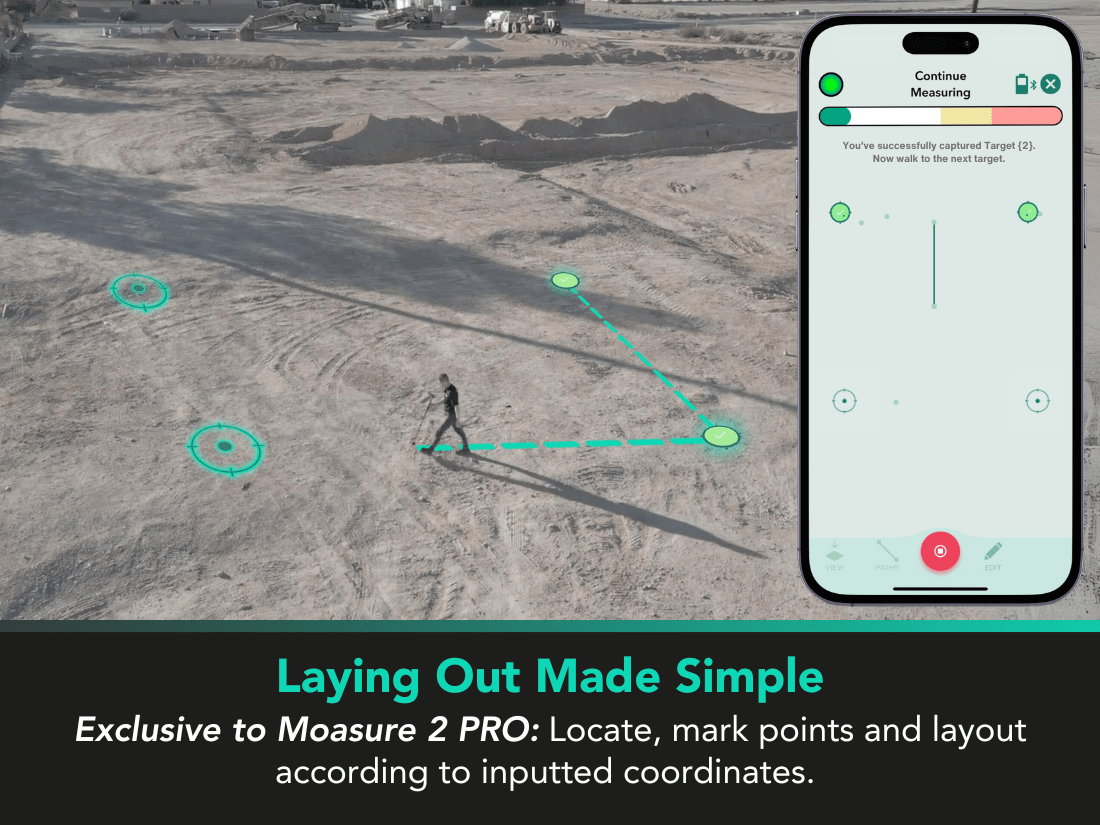

Stake out existing plans with Layout Mode
Layout Mode guides you from point to point, enabling you to mark out CAD files, CSVs, or previous Moasure measurements. Work quickly and independently to plot rough plans and temporary structures.
Learn more about Moasure’s features
Trusted by 100,000+ professionals
Customer Reviews
I loved how easy was to use and how practical the device is. I carry it anywhere. The ability to export as .dwg and pdf are extremely useful. I use to take quick mearuments for quoting concrete and flooring jobs.
At Sportzturf accurate take offs are important to us. With Moasure it’s a a walk in the park. If you’re still wasting time with that wheel or measuring tape. Make the investment it’s the best one you will make this year!
This tool has been great for finding elevations in areas where I'll be doing construction work. It lets me know exactly how much dirt I need to cut and fill.
I also love it for porches and decks. So many decks these days have complicated angles and shapes, and Moasure makes it easy to get the exact square footage no matter how crazy the layout. I use it to stop at every post location too, so I know precisely where all my new posts will go for a railing.
We absolutely love using this tool. We're all about innovative technology, and this fits right in with how we work.
Hello! I am a California-based horticultural/landscape designer running a one-person small business. Business is great, however, most of my time in the field had been spent measuring strange shapes in client gardens. Until I found Moasure! 3 months in, and this tool has definitely been a game-changer. Now, I can spend more time designing, and less time pulling around (2) 100-foot tape measures. Plus, I can tell in real-time how accurate my results are!
Thank you Moasure for giving me some time back, as we know in business that time is money.
such a game changer, it has made life very easy for me and hope to buy a few more in the future. Still a lot to learn how to use it, but for now iv been using closed shapes and doing my measurements.
Fantastic product. highly recommended.
How will it work for me?
Discover how professionals across America have integrated Moasure into their workflow:

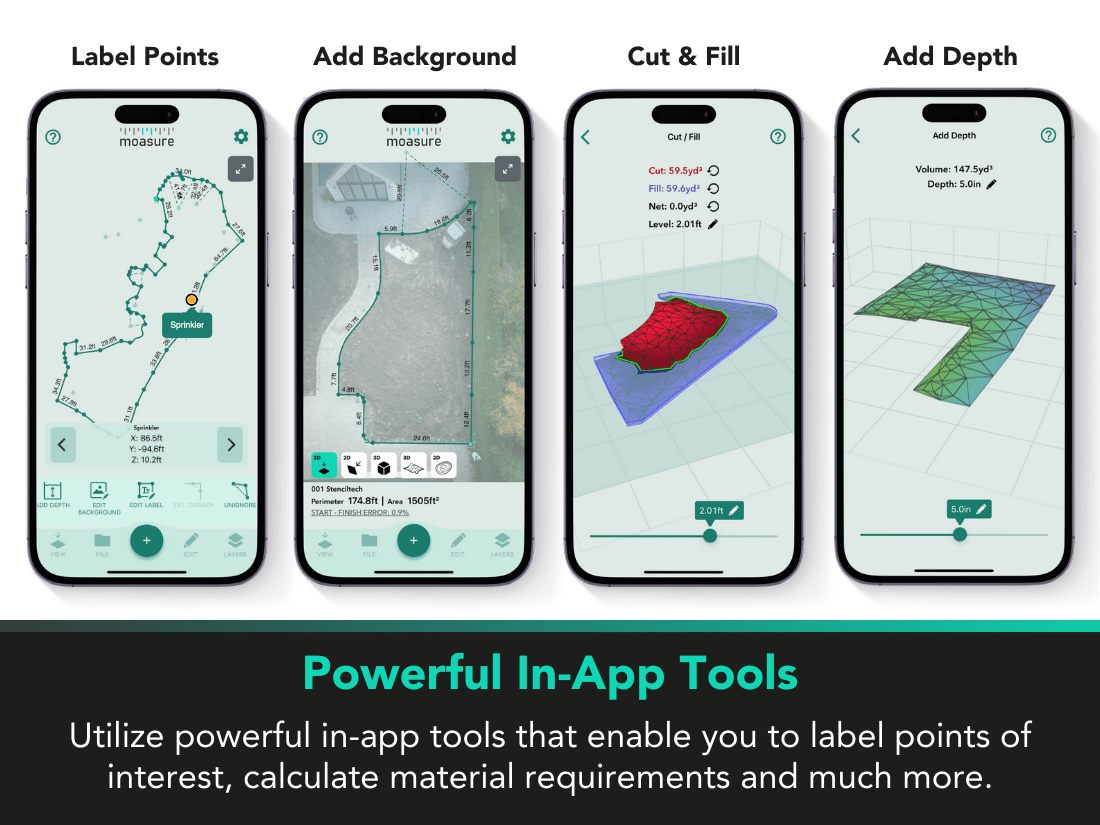

Edit, analyze, and export your measurements inside the free companion app
Review, edit, and export inside our companion app – no subscription required.
Calculate cut / fill volumes & add depth
Calculate the volume of material to add or remove from a site, or determine the level at which to adjust your site for net zero volume.

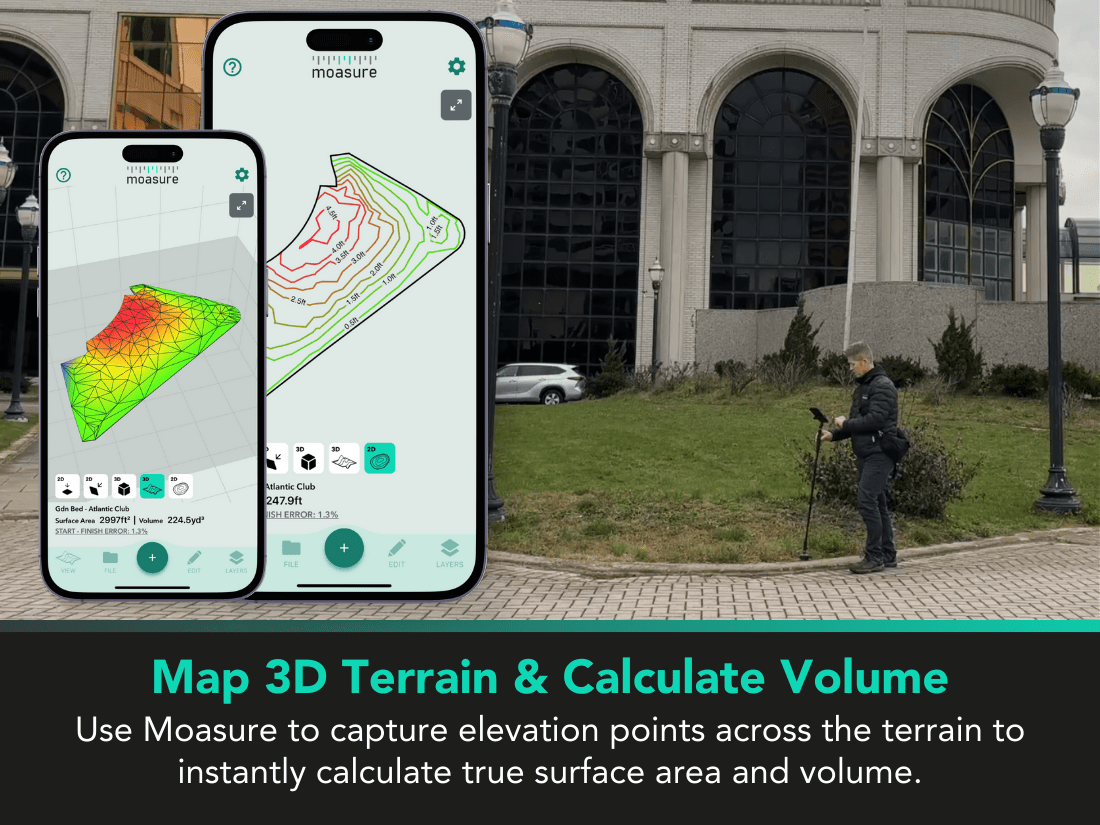

Review in 2D, 3D, or contour view
Choose the best view for the job. Review area and perimeter in 2D, analyze surface area and volume in 3D, or perform topographical surveys in contour view.

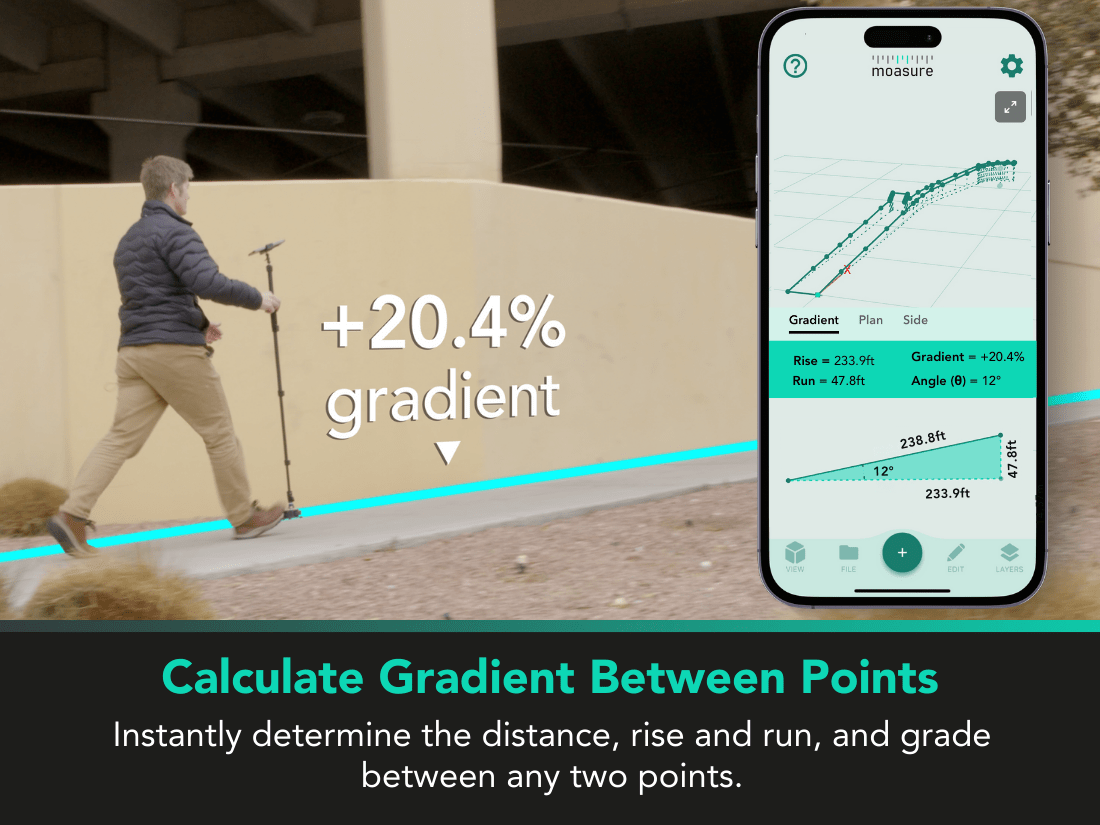

Calculate detailed elevation data
Using the cross section view, calculate the gradient, angle, and rise and run between two points on a site plan.
Add annotations and background images
Label points of interest and overlay your measurement on an aerial shot of the area to help clients or colleagues visualize your project.

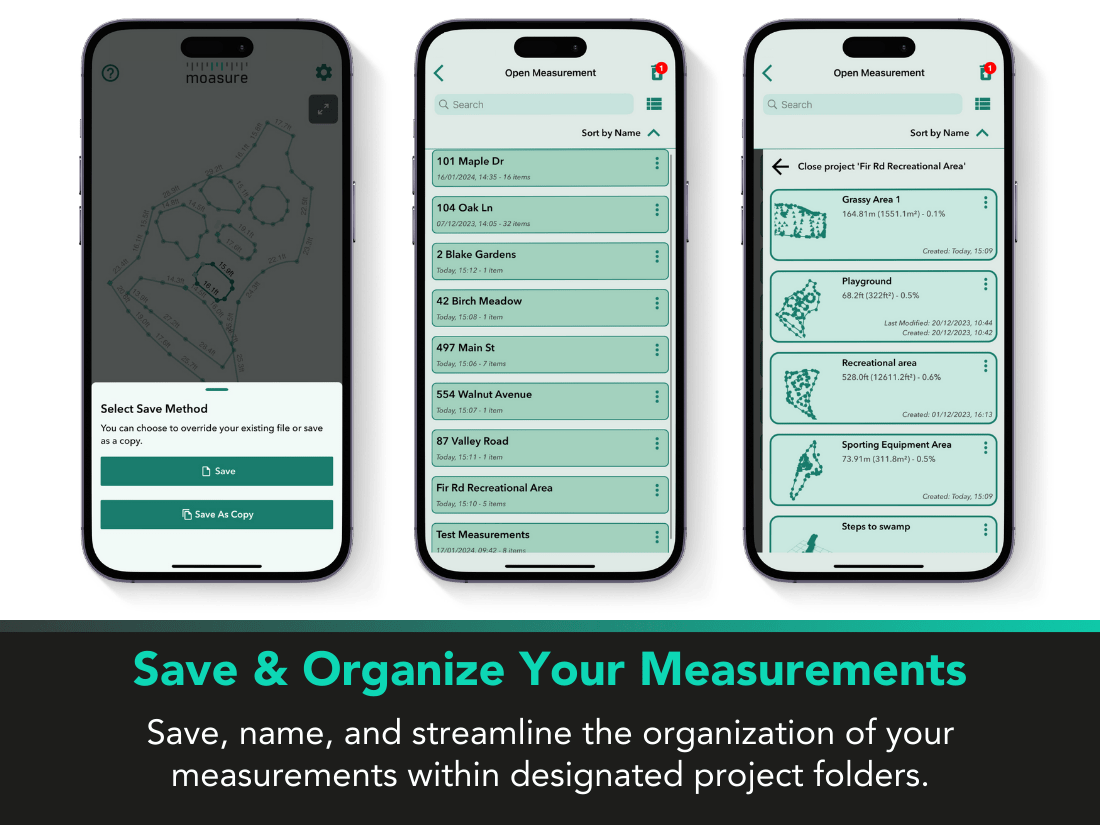

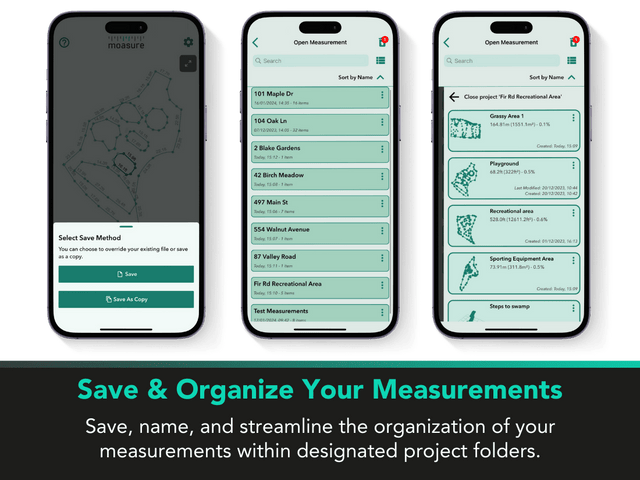

Organize your measurements
Save your Moasure files and organize them into folders all within the app for free.

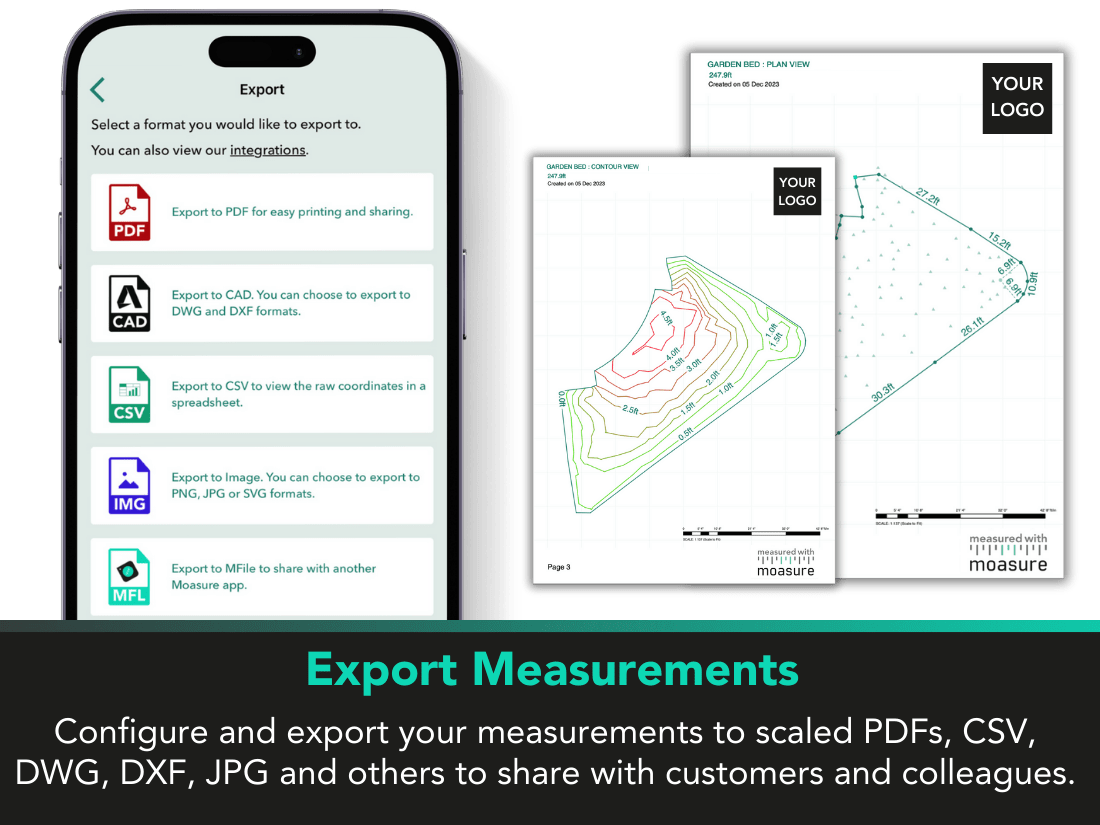

Effortlessly export to your favorite CAD software
Take your measurements from jobsite to CAD platform with our exports
View sample CAD files
Frequently asked questions
Learn more about Moasure's patented motion-based technology.
Linear Distance
±0.3% error
±2 inches over 50 ft
Elevation
±0.3% error
±¼ inch over 6 ft
Perimeter
±0.5% error
±6 inches over 100 ft
Area
±1% error
±2 sq ft over 200 sq ft
Volume
±1.5% error
±1.5 cu yd over 100 cu yd
Layout
±1% error
±2 sq ft over 200 sq ft
For best accuracy, use correct Moasure technique.
There's no fixed limit to the distance you can measure with Moasure. Instead, there's a limit determined by the available memory (RAM) on your smartphone or tablet.
As this varies across phones and tablets, we quote a 'safe' maximum distance of 1000ft and a maximum area of 100,000 sq ft to remain within the memory limit of most smartphones.
For areas larger than this, we recommend breaking up the measurement into a series of smaller measurements and stitching them together retrospectively in CAD software.
Some customers have measured distances of 2,500ft and areas of more than 269,000 sq ft in one measurement.
Moasure requires no subscription fees. After your one-off purchase, you receive complete access to our full suite of post-measurement tools, and you can export to CAD, PDF or CSV for free via the Moasure app.
The Moasure app is continuously updated for free to ensure that your Moasure device is supported with the latest tools and features.
We’re currently working on cloud-based storage of your measurements and a web editor, but it’s important to note that these optional features are not required to access all the benefits of your Moasure device.
Moasure 2 PRO is our flagship motion-based measuring tool. Experience up to 50% lower error in measurements – for tighter results on complex jobsites.
Moasure 2 PRO also features Layout Mode enabling you to plot points based on previous Moasure measurements or imported X,Y co-ordinates via a CSV or CAD file.
Moasure 2 is our 2nd generation measuring tool which builds on the success of our now discontinued Moasure ONE device.
Still have questions?
Chat with Moasure Bot.
Our virtual assistant can answer questions about product information, shipping details, and much more.
Moasure Bot
Explore measurements from our community
See real measurements from Moasure users around the world
Amphitheatre
Tennessee, USA
Parking Lot
United Kingdom
Golf Course
Sweden
Swimming Pool
Spain
Playground
United Kingdom
Moasure 2 vs. Moasure 2 PRO
Understand the differences between our Moasure 2 Series range.
Choose a feature to compare
Accuracy
Moasure 2
Linear Distance: ±0.5%
Perimeter: ±1%
Area: ±2%
Volume: ±3%
Elevation: ±0.5%
Layout: Not available
Moasure 2 PRO
Linear Distance: ±0.3%
Perimeter: ±0.5%
Area: ±1%
Volume: ±1.5%
Elevation: ±0.3%
Layout: ±1%
Achieve up to 50% more accuracy and improved consistency with Moasure 2 PRO. This helps you to achieve tighter tolerances and reduce material waste.
Layout Mode
Moasure 2 PRO exclusive
Locate entered X, Y points with Layout Mode on Moasure 2 PRO.
Try Moasure for 60 days
Moasure is a completely new way to measure. Try it on real jobs – and if it’s not right for you, send it back for a full refund.
Split your purchase into 3 or 6 interest-free monthly instalments at checkout. Proceed to payment as usual and select the payment option named: “Pay over time – up to 6 months, 0% APR”
Getting started with Moasure
We're with you every step of the way to get the most out of your Moasure:
In-depth user guide
Video tutorials and webinars
In-app support from our customer support team
Maximize your accuracy
Download sample measurements
Download measurements made with Moasure and import it to your CAD software.
Playground with layers
Mound with volume
Path with elevation
Moasure’s DWG and DXF files are supported by all major CAD platforms.
The world’s first motion-based measurement tool
Moasure’s award-winning technology combines advanced algorithms and the motion sensors.
100,000+
Units sold worldwide
300,000+
Miles measured
90+
Countries shipped to
